Gas Chromatography
& Fractional Distillation: Separation
of compounds based on differences in their boiling points
Introduction * Procedure
(Adapted from McMaster University's Experiments:
http://www.chemistry.mcmaster.ca
and the University of Colorado, Boulder:
http://orgchem.colorado.edu/hndbksupport/ochemlabtech.html )
Quantitative Separation of Hydrocarbons (Toluene-Cyclohexane) and Chromatographic Analysis
Introduction (Read Lab Text/Guide pp. 167-175, and pp. 136-138 )
Gas Chromatography:
See:
http://teaching.shu.ac.uk/hwb/chemistry/tutorials/chrom/gaschrm.htm
http://video.google.com/videoplay?docid=-3410718631045613107Distillation:
Distillation is the process of heating a liquid to a temperature at which it boils, cooling the hot vapors, and collecting the condensed vapors. Mankind has used distillation for thousands of years. Distillation was probably first used by ancient Arab chemists to isolate perfumes. Vessels with a trough on the rim to collect distillate, called diqarus, date back to 3500 BC. Distillation was mentioned by Aristotle (384-322 B.C.) as a method of purifying water, and Pliny the Elder (23-79 A.D.) recorded one of the earliest references to a rudimentary still, an apparatus used to perform alcohol distillation. Illegal distillers of alcoholic beverages, "moonshiners", use it to produce concentrated solutions of ethanol.
In the organic chemistry laboratory, distillation is still an important and powerful tool, particularly for the separation and purification of organic compounds that are normally liquids at room temperature. The boiling point of a compound—determined by distillation—is well-defined and therefore one of the physical properties of a compound by which it can be identified just as melting point. More commonly, distillation is used to purify a compound by separating it from more or less-volatile materials. When different compounds in a mixture have different boiling points, they separate into individual components when the mixture is carefully distilled.
------------------------------------------------------------------------Boiling Point Determination:
The boiling point is the temperature at which the vapor pressure of the liquid phase of a compound equals the external pressure acting on the surface of the liquid. The external pressure is usually the atmospheric pressure. For instance, consider a liquid heated in an open flask. The vapor pressure of the liquid will increase as the temperature of the liquid increases, and when the vapor pressure equals the atmospheric pressure, the liquid will boil. Different compounds boil at different temperatures because each has a different, characteristic vapor pressure: compounds with higher vapor pressures will boil at lower temperatures.
Boiling points are usually measured by recording the boiling point (or range) on a thermometer while performing a distillation. This method is used whenever there is enough of the compound to perform a distillation. The distillation method of boiling point determination measures the temperature of the vapors above the liquid. Since these vapors are in equilibrium with the boiling liquid, they are the same temperature as the boiling liquid. The vapor temperature rather than the pot temperature is measured because if you put a thermometer actually in the boiling liquid mixture, the temperature reading would likely be higher than that of the vapors. This is because the liquid can be superheated or contaminated with other substances, and therefore its temperature is not an accurate measurement of the boiling temperature.
Purification Methods:
Simple Distillation:
![]()
Simple distillations are used frequently in the organic chemistry. They are useful in the following circumstances:
- the liquid is relatively pure to begin with (e.g., no more than 10% liquid contaminants)
- the liquid is contaminated by a liquid with a boiling point that differs by at least 70°C
“ Simple” distillation may be a misleading term, since it takes a lot of practice in simple distillation to become proficient in this technique. You will use this technique in a later experiment.
Fractional Distillation:
Read Lab Text/Guide pp. 136-138
Fractional distillation is used.for mixtures of liquids whose boiling points are similar (separated by less than 70°C) and cannot be separated by a single simple distillation.

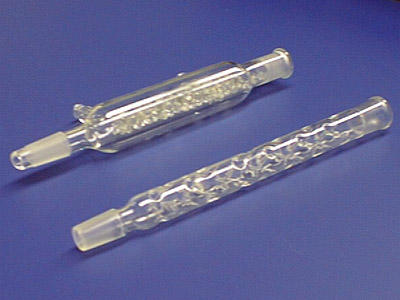

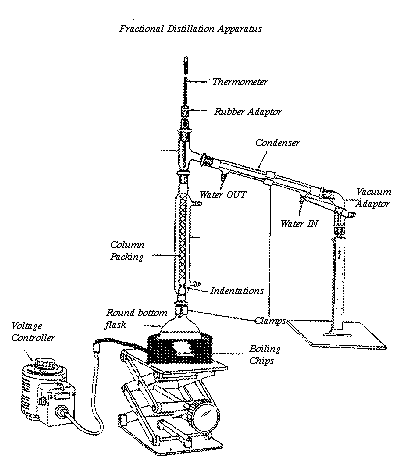

The fractionating columns below are a packed column on the left and a Vigreaux column on the right.
What happens in the fractionating column?
Consider a mixture with composition C1 (~80% B and ~20% A) that begins to boil; the dotted line on the Phase Diagram below.
The vapor over the top of the boiling liquid C1 will be richer in the more volatile component A, and will have the composition C2.
That vapor now starts to travel up the fractionating column. Eventually it will reach a height in the column where the temperature is low enough that it will condense to a liquid. The composition of that liquid will still be C2.The liquid trickles down the column where it meets new hot vapor rising, which causes the already condensed vapor to reboil.
Some of the liquid of composition C2 will boil to give a vapor of composition C3. This new vapor will again move further up the fractionating column until it gets to a temperature where it can condense which has the composition C4.
Each time the vapour condenses to a liquid, this liquid will start to trickle back down the column where it will be reboiled by up-coming hot vapor. Each time this happens the new vapor will be richer in the more volatile component. The aim is to balance the temperature of the column so that by the time vapor reaches the top after huge numbers of condensing and reboiling operations, it consists only of the more volatile component - in this case, B. Whether or not this is possible depends on the difference between the boiling points of the two liquids. The closer they are together, the longer the column has to be.
Since the vapor is richer in the more volatile component, the liquid left behind must be richer in the other, higher boiling one. As the condensed liquid trickles down the column constantly being reboiled by up-coming vapor, each reboiling makes it richer and richer in the less volatile component - in this case, A. By the time the liquid drips back into the flask, it will be very rich in A. So, over time, as B passes out of the top of the column into the condenser, the liquid in the flask will become richer in A. If you are very, very careful over temperature control, eventually you will have separated the mixture into B in the collecting flask and A in the original flask.
Each step in the Phase Diagram represents a "Plate" or one simple distillation, where you would recover a fraction at a certain temperature range and then use it alone in a second simple distillation which would constitue a second "Plate".
What makes the column efficient?
To make the boiling-condensing-reboiling process as effective as possible, it has to happen over and over again. By having a lot of surface area inside the column, you aim to have the maximum possible contact between the liquid trickling down and the hot vapor rising. If this didn't occur, the liquid would all be on the sides of the condenser, while most of the vapor would be going up the middle and never come into contact with it.The longer the column and the higher the surface area the more efficient the separation and the higher the number of "Plates".Calculating the number of theoretical plates in the column and HETP (Height Equivalent Theoretical Plate)
The very first fraction of distillate determines the efficiency of the column. The efficiency can be quantified as the column's number of "theoretical plates" by analyzing the mole fraction distribution of the components in this fraction using the following equation.# of theoretical plates = log (ncyclohexane/ ntoluene) / log α
for this mixture α = 2.33
HETP = column height in centimeters / (# of theoretical plates -1)
Note: One is subtracted from the total number of plates to account for the column less the boiling flask, which counts as one.
Experiment, Part 1: Gas Chromatography
1. Read Lab Guide: pp. 167-175
2. Complete the prelab form
3. Obtain an unknown. Analyze your individual unknown sample which is a mixture of cyclohexane and toluene. Report the mass percent results for each.Experiment, Part 2: Fractional Distillation / Gas Chromatography
Read Lab Guide: pp. 136-138Work in pairs. Place 0.200 mol of cyclohexane and 0.200 mol of toluene in a 100-mL boiling flask. Do this as accurately as possible. NOTEBOOK: Records should be kept in both partner’s notebooks; record data in a data table. Assemble an apparatus for fractional distillation, using the vigreaux column and a small beaker as a receiver for the forerun. Clean, dry, weigh, and number four fraction collectors with a capacity of 20 mL or more with tight-fitting caps. Have ready a smaller container to collect the HETP sample.
Watch the vapors rise in the column as you heat the boiling flask. When they reach the still head, reduce the heating rate enough to keep the ring of condensing vapors between the top of the column packing and the sidearm for several minutes, so that the vapor composition can stabilize before any distillate is collected. Distill the liquid slowly and discard the first few drops of distillate. Collect the next 5 - 10 drops in the HETP vial and cap it tightly. Quickly replace the vial with the first fraction collector, record the distillation temperature, and distill at a rate of not more than 20 drops per minute. When the distillation temperature reaches 85oC, replace the first fraction collector with the second one and cap the first one tightly. When the distillation temperature reaches 97oC, switch to the third collector. When the temperature reaches 107oC, remove the heat source and let all the liquid that remains in the column drain into the boiling flask. After it has cooled down, transfer the contents of the boiling flask to the fourth collector. At this point, you should have fractions covering the following boiling ranges:
1.) 81-85oC 2.) 85-97oC 3.) 97-107oC 4.) 107-111oC
Analysis:
Accurately weigh the four fractions. NOTEBOOK: record your data. Analyze each fraction plus the HETP sample by gas chromatography as done previously.
Report:
Determine the corrected peak areas. NOTEBOOK: Show calculations: 1) the percentage (by mass) of cyclohexane and toluene in each fraction, 2) the mass of cyclohexane and toluene in each fraction, and 3) the respective percentage ( on a mole basis) of cyclohexane and toluene in each fraction. Provide a data table for the calculated results. Plot the mole percent for each fraction (on the x- axis) as a function of boiling temperature, using the midpoints of the appropriate boiling ranges (on the y-axis). Draw a smooth, curve connecting the data points for cyclohexane and another for toluene. Calculate the number of theoretical plates provided by your fractional distillation apparatus; then calculate the HETP of your column. Provide 3 suggestions of improving the efficiency of your separation. Turn in your gas chromatograms (or photocopies) with your report. Answer the post lab on-line questions.
